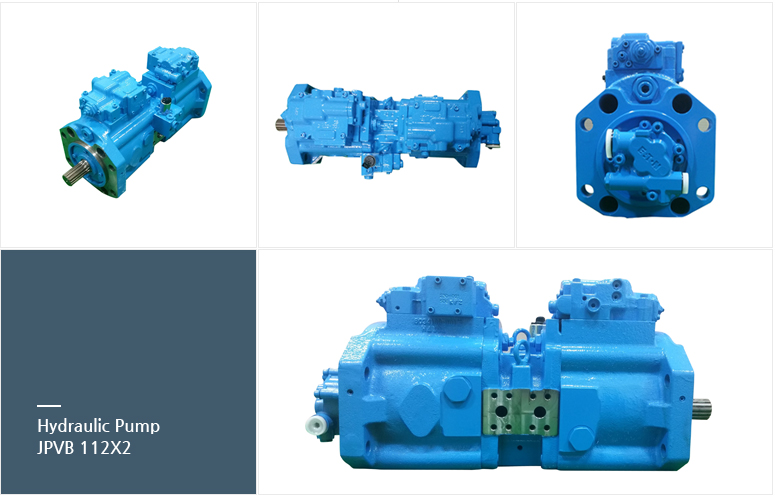

MAIN PUMP-JPVB SERIES
- JPVB Series : Variable Displacement Swash plate Type Piston Pump
- JPVB products are the piston pump which is used in construction machinery and industrial machinery.
It is a small, highly durable and high pressure pump.
It is designed to be used as the advanced main pump with the improved efficiency and low noise in construction machinery and industrial machinery.
| MODEL | DISPLACEMENT | MAXIMUM RATED PRESSURE |
MAXIMUM SPEED | FLOW AT 2000 RPM | MAXIMUM INPUT HP |
MAXIMUM INPUT TORQUE |
|
|---|---|---|---|---|---|---|---|
| cc/rev | bar | rpm | l/min | HP | Nm | ||
| JPVB112 | Main Pump | 2 X 112 | 345 | 2360 | 2 X 219 | 149 (INCLUDING GEAR PUMP) |
588 (INCLUDING GEAR PUMP) |
| Gear Pump | 10 | 50 | 2360 | 19 | |||
