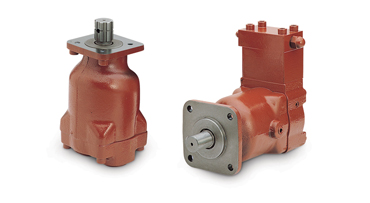

PISTON PUMP - JPF SERIES
- Axial Piston PUMP / JMF SERIES
- highly reliable in a structure suitable for high pressure, the fixed capacity-type piston pump of the JPF seris is designed to be used as a main pump for vehicles with special equipment and industrial and shipbuilding machinery.
- maintenance and repair are easy because the structure of the pump is simple.
- Durability is excellent by using high-grade materials for the areas of frictions between parts.
| MODEL |
DISPLACEMENT (cc/rev) |
PRESSURE (kgf/㎠) |
SPEED (rpm) |
| RATED |
MAX |
MIN |
MAX |
| JPF48-01 |
48 |
210 |
250 |
500 |
2500 |
| JPF54-01 |
54 |
210 |
320 |
500 |
2500 |
| JPF54-03 |
54 |
210 |
320 |
500 |
3000 |
