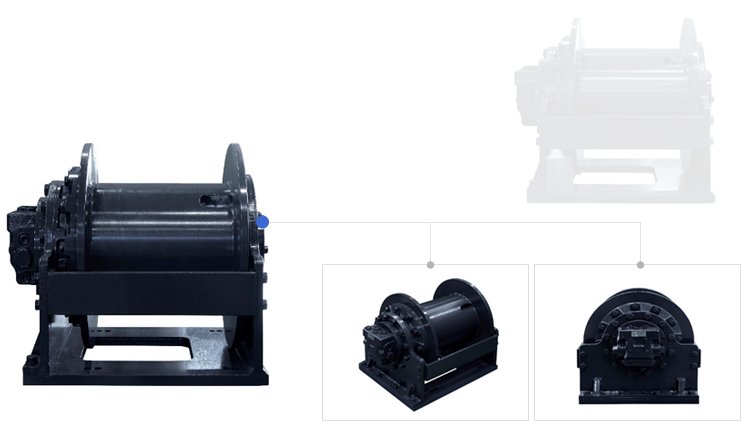

WINCH MOTOR
- JMV(Winch) Series :
- JMV Series is a swahs(swash) piston pump available on the winch for Special Equipment vehicles[SEV] and ships.
It consists of the structure which enables speed conversion, and it is high pressure and performance motor that the system on each part of motor is optimized.
| MODEL | MAX MOTOR DISPLACEMENT |
MAX OUPUT TORQUE |
MAX SPEED | MAX PRESSURE | BRAKE TORQUE | GEAR RATIO | ||
|---|---|---|---|---|---|---|---|---|
| cc/rev | N.m | kgf·m | rpm | Mpa | kgf/㎠ | kgf·m | ||
| JMV-53/31-VBC-01 | 53.2/30.7 | 173.7 | 17.8 | 3000 | 20.6 | 210 | min 24 | x |
| JMV-53/31-VBCR41D | 53.2/30.7 | 7267 | 741 | 3000 | 20.6 | 210 | min 1081 | 41.6 |
| JMV-48/24-VBCR45D | 48.3/24.5 | 7213 | 735.5 | 3000 | 20.6 | 210 | min 1184 | 45.6 |
| JMV-48/24-VBCR45D | 48.3/24.5 | 7213 | 735.5 | 3000 | 20.6 | 210 | min 1184 | 45.6 |
