SWING MOTOR

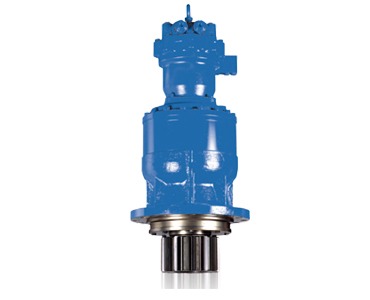

JMF Series : JMF Fixed Displacement Swing Drive Motor
This axial swash type piston motor may be used for industrial machinery, inclouding for the circular movement of construction machinery and for the winching equipment of ships.The mechanical brake, relief valve and the make-up valve being built in, the circular movement of the motor is very smooth.
The motor is made compact by arraying the motor, brake and valve in a prosper manner. High capacity and reliability have been realized by optimizing the motor and the valves.
Mechanical shocks have been minimalized by absorbing changes in pressure and torque which may occur when the motor stops operation
MODEL MOTOR
DISPLACEMENT		 Hose
I.D.		 MAX OUPUT
TORQUE		 GEAR RATIO REDUCER MAX.
SPEED		 MAX. FLOW NORMAL PRESSURE MECHANICAL
BRAKE TORQUE
(MOTOR)		 TIME DELAY
VALVE		 ANTI-REVERSE
VALVE		 OUTPUT PINION MASS TYPICAL VEHICLE
APPLICATION
  cc/rev N.m   rpm l/min bar bar Reducer     Module Number Kg Ton
JMF 027 27 2116 22.5 59 36.6 230 276 98 ● × 7 14 50 4~5
JMF 029 29 1929 19.5 63 35.6 230 276 137 ● × 7 14 75 5~6
JMF 030 30 2118 19.5 60 35.6 230 276 137 ● × 7 14 75 5~6
JMF 032 32 2156 19.5 58 35.6 230 276 137 ● × 16/32 15 75 5~6
JMF 033 33 2277 19.5 63 40 230 276 137 ● × 7 14 75 7
JMF 036 36 2569 19.5 51 36 230 276 137 ● × 7 14 75 8
JMF 039 39 2213 19.5 90 75.6 230 276 137 ● × 16/32 15 75 8
JMF 043 43 2873 19.5 72 60 230 276 137 ● × 8 12 75 8
JMF 047 47 3182 19.5 74 68 230 276 137 ● × 8 12 77 8
JMF 053 53 3034 19.5 78 81 230 276 137 ● × 8 12 77 13
JMF 064 64 4565 19 107 130 280 336 245 ● ● 10 12 160 14
JMF 068 68 4850 19 101 130 280 336 245 ● ● 10 12 160 18
JMF 118 118 8122 17.6 82 170 280 336 579 ● ● 12 13 237 22
JMF 151 151 9977 17.6 84 225 280 336 579 ● ● 12 13 237 29
JMF 169 169 17787 23.6 62 250 320 385 686 ● ● 14 15 240 30
JMF 195 195 18331 22 58 250 320 385 864 ● ● 14 14 400 33~36
JMF 233 233 23166 22 56 288 320 385 1049 ● ● 14 15 440 33~36
JMF 250 250 24858 22 52 288 320 385 1049 ● ● 14 15 440 45~50
